“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High

MOQ : 1 set

Delivery Time : 30-50 days

Working days : 50 working days

Payment Terms : T/T, L/C

Packaging Details : Tarpaulins and wooden cases

Model Number : Customized

Warranty : 3 years

Container : 40 feet container

Price : As Drawing

Export port : Tianjin port

Supply Ability : 10 Sets/Month

Raw material : Galvanized steel or PPGI

Certification : CE

Brand Name : IRONSTAR

Place of Origin : China

Contact Now

PPGI Galvanized And Color Steel Metal Sheet Slitting And Recoil Whole Line Roll Forming Machine

Slitting and recoil whole line can slit to your want size and length automatically. Speed common 10-30 m/min. If you want to buy slitting machine, please tell me your used material, thickness and width, how many strips u want to get?

Slitting and recoil whole line | coil slitting line | coil slitting machine

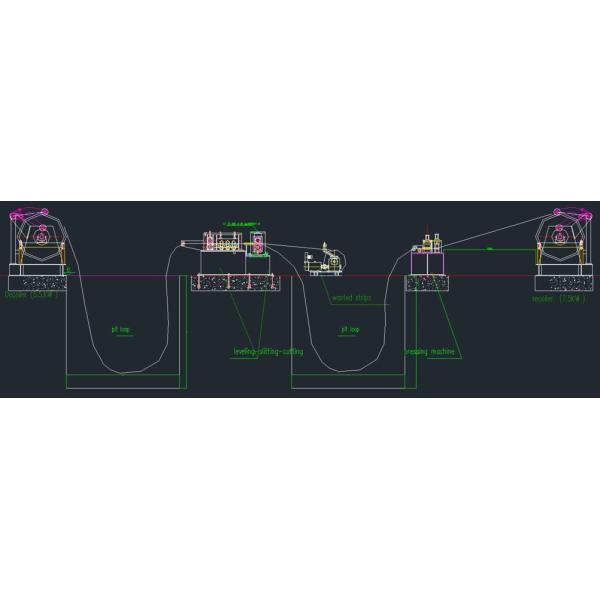

Work flow of Slitting and recoil whole line

Decoiler - leveling part - slitting - hydraulic cutter - recoiler

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High

Slitting and recoil whole line

This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.

You can also cut to short panels after slitting.

Diameter of Slitting and recoil whole line

NO	Type		Specification
1	Raw material	Type	Galvanized steel or PPGI
		Feeding width	1250/1220/1200/1000mm or as customer' need
		Thickness	0.3-0.8 mm
		Max strips	11 strips
3	Main body	Machine size	About 18m6m (lengthwidth)
		Voltage	380V/50HZ, 3 phase
		Working speed	Common speed 0-30 m/min

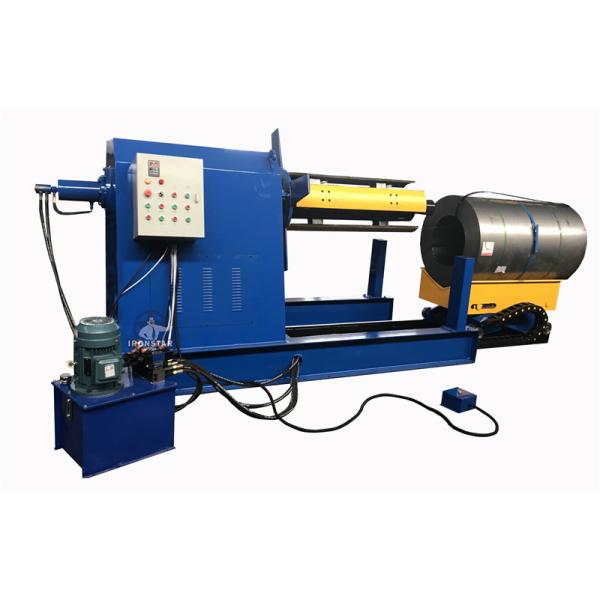

Automatic uncoiler with loading car

This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.

You can also cut to short panels after slitting.

NO	Type		Specification
1	Raw material	Type	Galvanized steel or PPGI
		Feeding width	1250/1220/1200/1000mm or as customer' need
		Thickness	0.3-0.8 mm
		Coil inner diameter	460-640 mm
		Maximum coil width	1250 mm
2	Decoiler	Operation	Hydraulic with car
2	Decoiler	Weight apacity	5 Tons
3	Power	Working speed	Adjustable according to production speed
		Main motor	4 KW
		Inverter	5.5 KW
		Voltage	380V/50HZ, 3 phase or ass customer' request

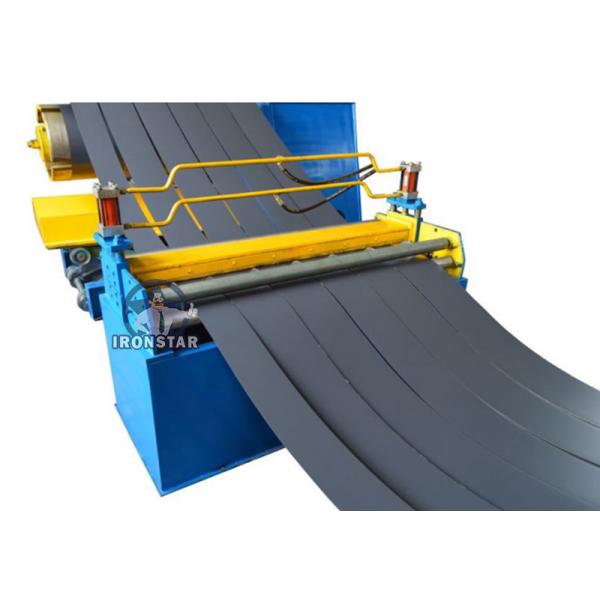

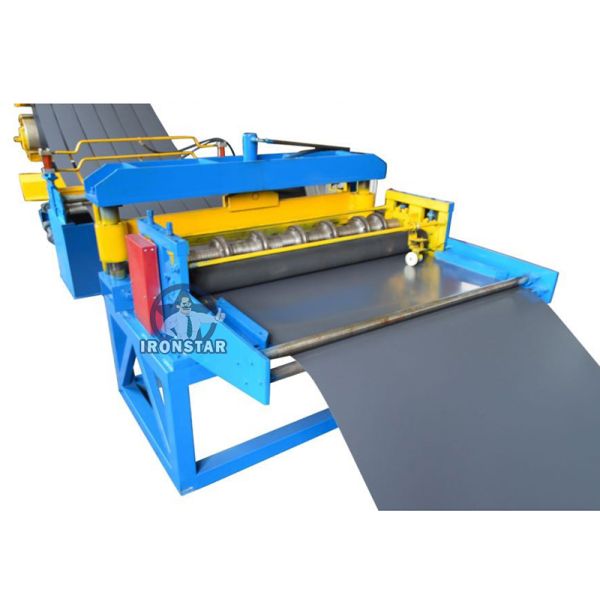

Leveling-slitting-cutting

Here slitting machine used to slit the coil sheet into narrow strips and cutting off material

NO	Type		Specification
1	Slitting machine	Guarding bar	Adjustable, to fit for different material width
		Feeding width	1250/1220/1200/1000mm or as customer' need
		Thickness	0.3-0.8 mm
		Slitting cutter	10 sets cutter to slit 11 strips
2	Machine body	Working speed	10-30 m/min
		Main motor	4 KW
		Support plate	16 mm

Pressing machine

Press machine is used to fasten the strips for the recoiler, prevent it get loose when recoil

Press machine is powered by hydraulic, tension is adjustable

Hydraulic station power: 3 kw

Auto recoiler with loading car

The recoiler is equipped with fast-adjustable spacers, so you can adjust for different width strips fast

Inner diameter range: 500-530 mm

Max loading weight: 5 ton

Motor power: 5.5 kw / Inverter power: 7.5 kw

Recoiling speed adjustable.

There is also pressing arm and loading car.

The pressing arm is used to make sure the coil is tight.

The loading car is used to unload the small coils after you finish

Spare parts free for customer

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 40 feet container to hold.
