Touch Screen PLC Automatic Valley Tray & Ridge Cap Roll Forming Machine Metal Roof Capping Profile Making Equipment

Name: Touch Screen PLC Automatic Valley Tray amp Ridge Cap Roll Forming Machine Metal Roof Capping Profile Making Equipment
Brand: IRONSTAR
Price: 1 USD

Model Number : Customized

Working days : 40 working days

Supply Ability : 10 Sets/Month

Name : Vally Tray Ridge Cap Roll Forming Machine

Export port : Tianjin port

Payment Terms : T/T, L/C, D/A, D/P

Raw material : PPGI (Pre-Painted Galvanized Steel ) material

Price : As Drawing

Warranty : 3 years

MOQ : 1 set

Delivery Time : 30-50 days

Container : 20 feet container

Place of Origin : China

Packaging Details : Tarpaulins and wooden cases

Certification : CE

Brand Name : IRONSTAR

Customized : Yes

Contact Now

Automatic Contral Touch Screen Vally Tray Ridge Cap Roll Forming Machine

Vally Tray Ridge Cap Roll Forming Machine

Cap ridge roll forming machine popular sell in many countries, common Cap ridge rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

312 ridge cap roll forming machine | Cap ridge roll forming machine | Capping roll forming machine

Work flow of Cap ridge roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

Diameter of Cap ridge roll forming machine

NO	Type		Specification
1	Raw material	Type	PPGI
		Feeding width	As customer' drawing
		Thickness	0.3-0.6 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	3 Tons
3	Main body	Roller station	14 rows
		Diameter of shaft	70 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	45# with 0.05mm chrome
		Frame	Steel plate welding
		Frame thickness	16 mm
		Machine size	About 4.50.81 m
		Machine weight	About 1.8 tons
		Machine color	As customer need
		Operation	Hydraulic automatic
		Working speed	Common speed 8-20 m/min
4	Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr 12
		Operate	Hydraulic cutting
5	Power	Driving way	Chain 1 inch
		Main motor	4 KW
		Pump motor for cutter	5.5 KW
		Voltage	380V/50HZ, 3 phase or ass customer' request
6	Control box	Electric box	PLC control system, inventer
		Screen	Touchable screen
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan or SAJ
		Language	Chinese and English or as customer' request
7	Stacker	Operation	Manual
7	Stacker	Length	2-3 m

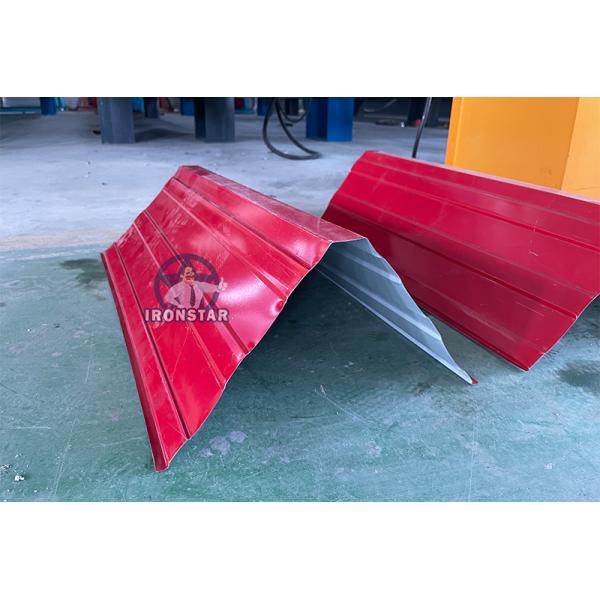

Product show

Cap ridge install

Feeder decoiler

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

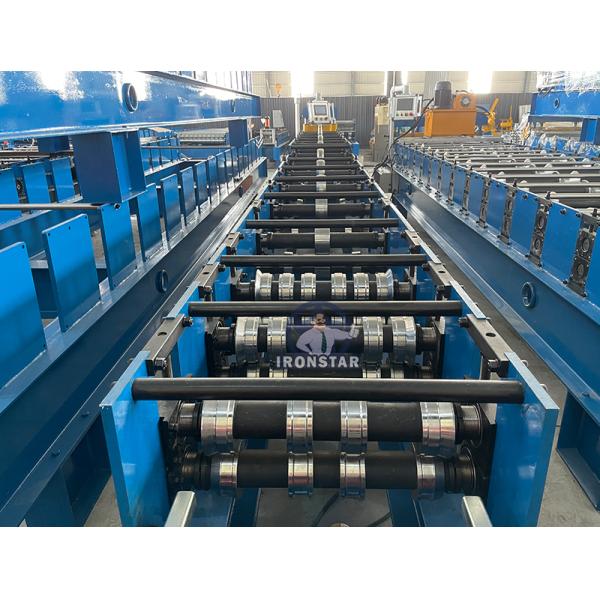

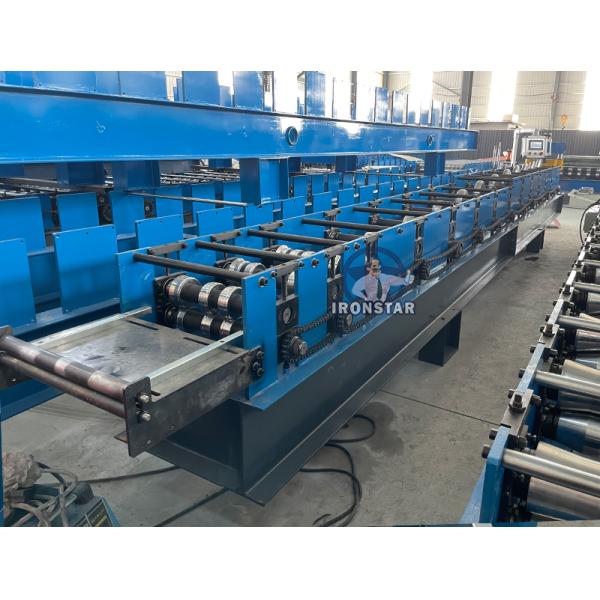

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

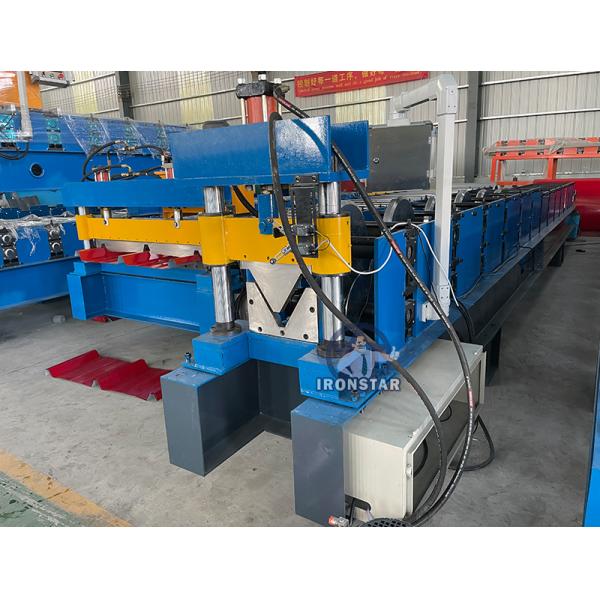

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

Feeding table

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

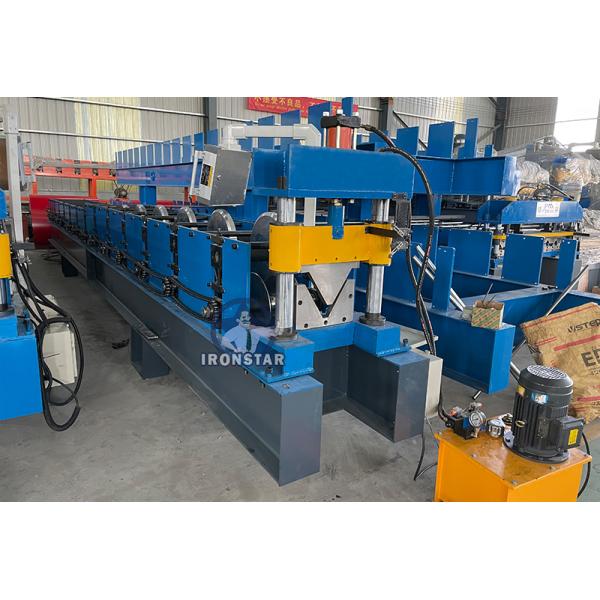

Hydraulic oil pump

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Certificate CE & ISO9001
